Internal reference: 1311200020

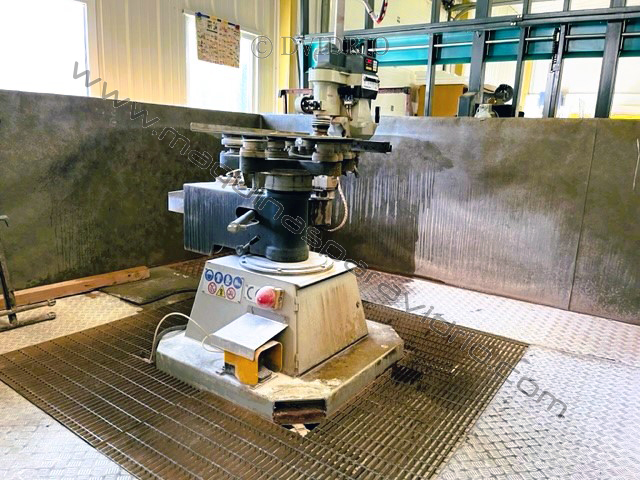

Brand: BAVELLONI
Model: SB 10
Manufacturing Year: 2018
Useful dimensions:

- Working thickness: 3 ÷ 40 mm
- Minimum and maximum working dimensions for
beveling: 230 - 2100 mm
- Minimum and maximum working dimensions for
edging: 100 - 2100 mm
- Minimum working dimensions for
continuous: 100 mm
- Maximum bevel width: 40 mm

Particular characterisitics:

- Min. compressed air pressure: 8 bar
- Max. compressed air consumption: 25 Nlt/min
- Bevel inclination: 0° - 45
- Installed power: 3 kW
- Total radius: 1600 mm
- Base dimensions: 1000 x 1000 mm
- Max. height: 2000 mm
- Weight: 600 Kgs.

Warranty: No
