Internal reference: 1314500009
Brand: SCG

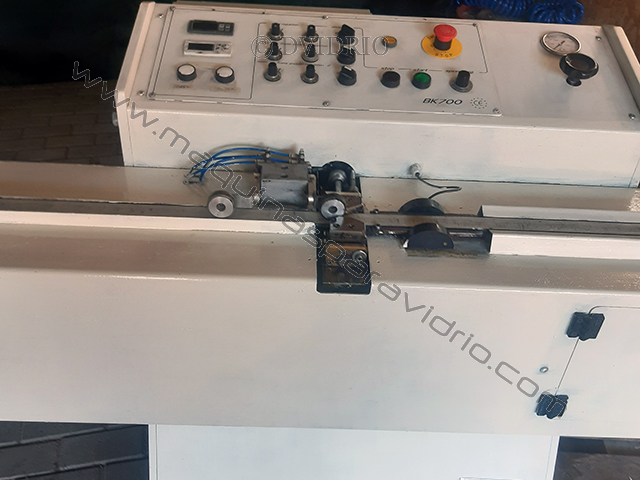

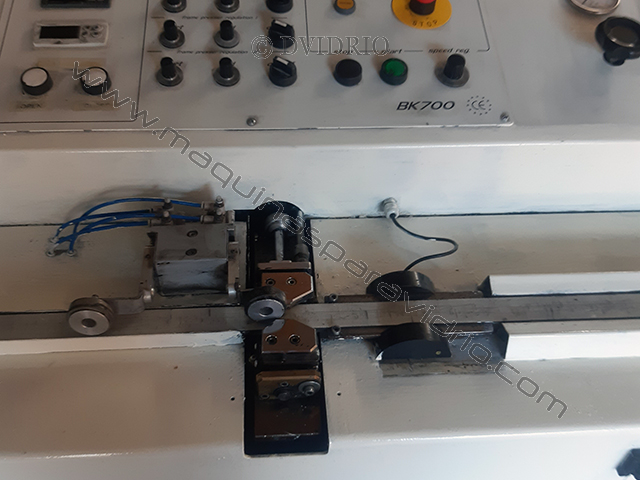

Model: BK700
Manufacturing Year: 2012
Particular characterisitics:

-Nozzle opening 6 - 32 mm

-Working temperature 135°

-Used butyl 7 kg

-Average pow er consumption 1,4 Kw

-Extrusion head positioning accuracy mm +/- 0,1 -Recharge time min. 3

-Machine heating time min. 25/30 min

-Compressed air required max 10lt

-Installed pow er 3 Kw

-Motor for hydraulic pump 1.1 Kw 220V

-Electrical resistance of W 2000

-Pow er supply 220V 50hz

-Dimensions mm 3000x700x1000

-Speed 0-36 mt/min.

-Weight 450 kg

Warranty: No
